Protobuf与Netty集成

Netty对于消息编码和解码、半包读写问题支持很好；protobuf支持多语言，编码后消息小利于存储和传输。

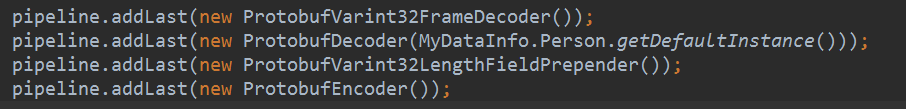

Netty对于Protobuf提供了很好的支持，我们在使用的过程中，可以直接使用Netty提供的Protobuf相关Handler，如：下面通过一个小demo记录使用的方法，与前面的代码类似，分别定义一个client和一个server程序。

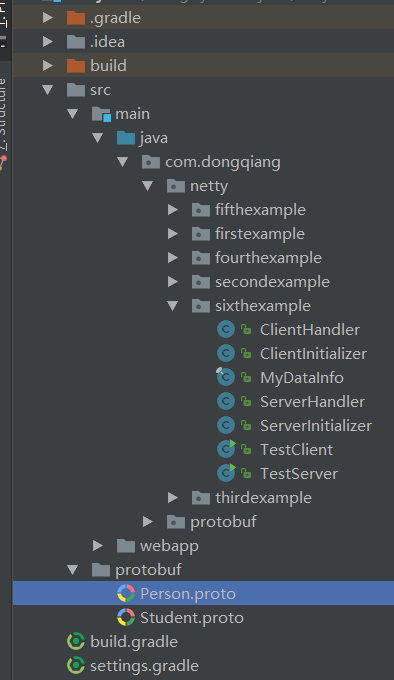

代码组织方式：

编写Protobuf

Person.proto

syntax = "proto2";

package com.dongqiang.protobuf;

option optimize_for = SPEED;

option java_package = "com.dongqiang.netty.sixthexample";

option java_outer_classname = "MyDataInfo";

message Person {
    required string name = 1;
    required int32 age = 2;
    optional string address = 3;
}

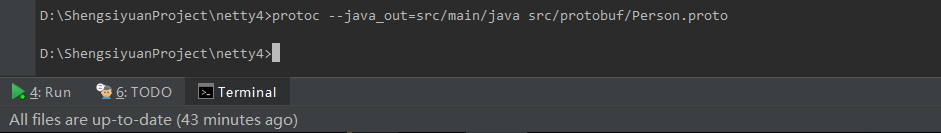

需要在命令行使用protoc命令将Person.proto文件生成Java文件，生成的Java文件MyDataInfo.java位于package com.dongqiang.netty.sixthexample下

客户端

package com.dongqiang.netty.sixthexample;

import io.netty.bootstrap.Bootstrap;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioSocketChannel;

/**
 * Created by dongqiang on 2017/6/24.
 */
public class TestClient {
    public static void main(String[] args) throws InterruptedException {

        EventLoopGroup eventLoopGroup = new NioEventLoopGroup();
        try {
            Bootstrap bootstrap = new Bootstrap();
            bootstrap.group(eventLoopGroup).channel(NioSocketChannel.class).handler(new ClientInitializer());
            bootstrap.connect("localhost", 8899).channel().closeFuture().sync();
        } finally {
            eventLoopGroup.shutdownGracefully();
        }
    }
}

ClientInitializer.java

package com.dongqiang.netty.sixthexample;

import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.protobuf.ProtobufDecoder;
import io.netty.handler.codec.protobuf.ProtobufEncoder;
import io.netty.handler.codec.protobuf.ProtobufVarint32FrameDecoder;
import io.netty.handler.codec.protobuf.ProtobufVarint32LengthFieldPrepender;

/**
 * Created by dongqiang on 2017/6/24.
 */
public class ClientInitializer extends ChannelInitializer<SocketChannel> {
    @Override
    protected void initChannel(SocketChannel ch) throws Exception {
        ChannelPipeline pipeline = ch.pipeline();
        pipeline.addLast(new ProtobufVarint32FrameDecoder());
        pipeline.addLast(new ProtobufDecoder(MyDataInfo.Person.getDefaultInstance()));
        pipeline.addLast(new ProtobufVarint32LengthFieldPrepender());
        pipeline.addLast(new ProtobufEncoder());

        pipeline.addLast(new ClientHandler());
    }
}

这里初始化器中添加了多个Protobuf相关的Handler，用来编解码Protobuf数据。

package com.dongqiang.netty.sixthexample;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;

/**
 * Created by dongqiang on 2017/6/24.
 */
public class ClientHandler extends SimpleChannelInboundHandler<MyDataInfo.Person> {
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, MyDataInfo.Person msg) throws Exception {

    }

    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        MyDataInfo.Person person = MyDataInfo.Person.newBuilder()
                .setName("zhangsan").setAge(22).setAddress("nanjing").build();
        ctx.channel().writeAndFlush(person);
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        cause.printStackTrace();
        ctx.close();
    }
}

在客户端的handler中，当连接上服务器时就发送一个消息，内容为protobuf格式对象。

服务端

TestServer.java

package com.dongqiang.netty.sixthexample;

import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.ChannelFuture;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.handler.logging.LogLevel;
import io.netty.handler.logging.LoggingHandler;

/**
 * Created by dongqiang on 2017/6/24.
 */
public class TestServer {

    public static void main(String[] args) throws Exception {

        EventLoopGroup bossGroup = new NioEventLoopGroup();
        EventLoopGroup workerGroup =  new NioEventLoopGroup();

        try {
            ServerBootstrap serverBootstrap = new ServerBootstrap();
            serverBootstrap.group(bossGroup, workerGroup).channel(NioServerSocketChannel.class)
                    .handler(new LoggingHandler(LogLevel.INFO)).childHandler(new ServerInitializer());
            ChannelFuture channelFuture = serverBootstrap.bind(8899).sync();
            channelFuture.channel().closeFuture().sync();
        } finally {
            bossGroup.shutdownGracefully();
            workerGroup.shutdownGracefully();
        }
    }
}

ServerInitializer.java

package com.dongqiang.netty.sixthexample;

import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.protobuf.ProtobufDecoder;
import io.netty.handler.codec.protobuf.ProtobufEncoder;
import io.netty.handler.codec.protobuf.ProtobufVarint32FrameDecoder;
import io.netty.handler.codec.protobuf.ProtobufVarint32LengthFieldPrepender;

/**
 * Created by dongqiang on 2017/6/24.
 */
public class ServerInitializer extends ChannelInitializer<SocketChannel> {
    @Override
    protected void initChannel(SocketChannel ch) throws Exception {
        ChannelPipeline pipeline = ch.pipeline();

        pipeline.addLast(new ProtobufVarint32FrameDecoder());
        pipeline.addLast(new ProtobufDecoder(MyDataInfo.Person.getDefaultInstance()));
        pipeline.addLast(new ProtobufVarint32LengthFieldPrepender());
        pipeline.addLast(new ProtobufEncoder());

        pipeline.addLast(new ServerHandler());
    }

}

ServerHandler.java

package com.dongqiang.netty.sixthexample;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;

import java.util.UUID;

/**
 * Created by dongqiang on 2017/6/24.
 */
public class ServerHandler extends SimpleChannelInboundHandler<MyDataInfo.Person> {
    @Override
    protected void channelRead0(ChannelHandlerContext ctx, MyDataInfo.Person msg) throws Exception {
       String name = msg.getName();
       int age = msg.getAge();
       String address = msg.getAddress();
       System.out.println(name + ":" + age + ":" + address);
       ctx.channel().writeAndFlush("server: " + UUID.randomUUID().toString());
    }

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) throws Exception {
        cause.printStackTrace();
        ctx.close();
    }
}

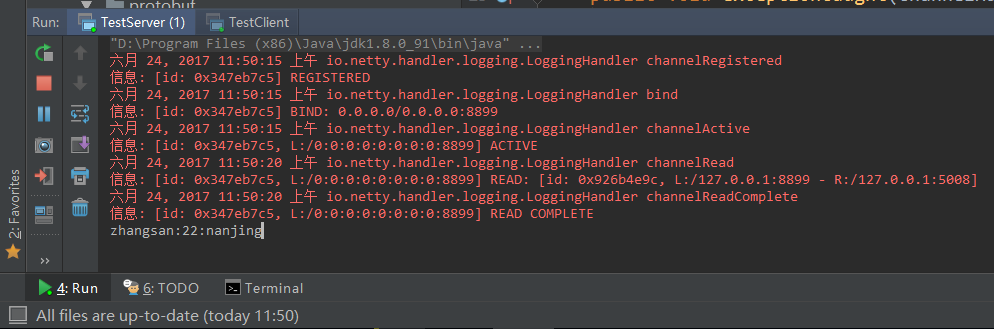

运行起来后，可以在服务端看到如下：

存在的问题：

如果多消息怎么处理？

1.自定义协议，比如前两位作为类型标志。

2.定义枚举
